Defining the Wallpaper

This task shows you how to associate images to your environment walls either using the default textures provided in the default material library or custom textures.

Open the Lamp.CATProduct document and create an environment as explained in Creating an Environment.

Using default textures

  1. Select any wall of the environment onto which you want to apply a wallpaper.

    As far as showroom environments are concerned, you can apply a different texture to each wall of the environment.

  2. Click Apply Material to display the Library window:

    The material to be applied onto the wall must have a texture, otherwise an error message is displayed.

  3. Click the Construction tab, for example.

  4. Select Marble Paving.

  5. Click Apply Material to map the image texture of the material onto the selected wall.

  6. Repeat these steps as many times as necessary for the other walls.

    Instead of clicking Apply Material, you can also use the contextual menu then copy the material before pasting it or drag and drop the material directly onto the wall.

  7. Click Shading with Material in the View toolbar.

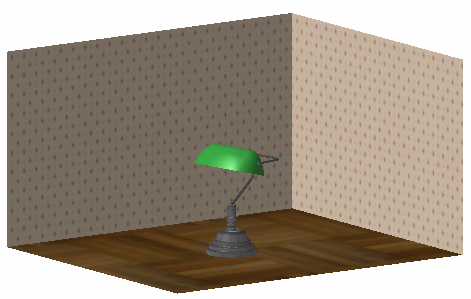

    The material texture is mapped onto the selected wall.
    In the above example, we applied the following materials: Summer Sky and Wood Floor.

  8. To modify the mapped texture properties, right-click the corresponding environment wall in the specification tree then select Properties or xxx object > Definition.

    The Properties dialog box is displayed:
    The Texture tab lets you modify the image name as well as the material scale, position and orientation.
    The Image Name box lets you modify the mapped texture either by choosing another texture from the default material library or by choosing a custom texture.

  9. The Flip U, V check boxes let you invert the material texture along U and V axes.

    You can select the Lock Texture Fit check box if you want to prevent texture fit alteration when modifying the environment size.

  10. Define the image repetition along U and V, as well as its scale, its position and its orientation:

    U and V correspond to parameters of the local parametric surface.



    • Repeat U, V: lets you specify whether or not you want the texture repeated ad infinitum along u- and v-axes
    • Scale U, V: determines how the texture is stretched along u- and v-axes
    • Position U, V: determines the position of the texture along u- and v-axes. By default, the image is centered
    • Orientation: defines the rotation of the texture on surfaces.
    You can click the Links U and V scales button to resize U and V proportionally. This is especially useful for square shapes such as the Floor material.
    When this option is activated, the button changes to .
    Click the Fit All In Wall button to automatically scale the texture in order to fit it in the wall.

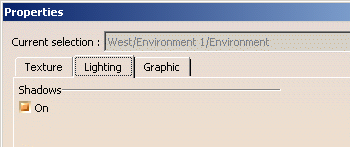

  11. Click the Lighting tab and select the On check box if you want to enable shadow casting on the wall.

    When the option is off, the wall is visible even if not illuminated.
    Note that this option is used for rendering only.

  12. Click OK or Apply + OK to validate and close the Properties dialog box.

Using custom textures

  1. Select any wall of the environment onto which you want to apply the wallpaper.

  2. Right-click then select Properties or xxx object > Definition then access the Texture tab:

  3. Enter the name of the texture to be mapped directly in the Image Name box or click the ... button to navigate to the desired file.

    Depending on the document environments (i.e. the method to be used to access your documents) you allowed in the Document settings, an additional window might appear simultaneously to the File Selection dialog box to let you access your documents using an alternate method:
    In our example, four document environments have been allowed among which the DLName environment. If you want to access your texture files using DLNames, for instance, just click the Logical File System button: this opens a specific dialog box dedicated to the DLName environment.
    For detailed information on this dialog box, refer to Opening Existing Documents Using the Browse Window.

  4. Click OK to validate.

  5. Repeat steps 1 to 4 for the other walls.

    Once a file name has been entered in the Image Name box, the other boxes are grayed out to let you modify the texture properties. To do so, repeat steps 9 to 12 detailed above.

  6. Click OK to validate your modifications.
