Metrabyte uCCTM-05/A

@6099.adf "MetraByte UCCTM-05 Counter/Timer Board"

CTM-05 External DAS Driver User’s Guide
CTM-10 and CTM-05/A User's Guide 87570D
Limits on Pulse Width or Frequency of Signals Generated w/ CTM-05/A or CTM-10

DOS Standard Software:
ctm10100.exe ver 1.00 CTM-05/A & CTM-10 Standard Software
ctm5-432.exe ver 4.32 original CTM-05 Standard Software [and uCCTM-05/A]

CTM05.EXE controls the boards and allows communication between an application program and the boards. CTM05.EXE executes as a terminate-and-stay-resident (TSR) program that occupies a small amount of memory in your computer.

ASO for Windows:
ctma102.exe ver 1.02 CTM-05/A & CTM10 16bit Win3.1
ctma9510.exe ver 1.00 CTM-05/A & CTM10 32bit Win95
asowin95.exe ver 2.47 32-bit Win95/98 upgrade

DriverLINX Driver API's (Program Interfaces) - All Models; Version A12

NOTE: ASO for Windows was originally targeted for Windows 3.1. For use in Win95 or Win98 with 32bit compilers, the ASOWIN95 upgrade is required in addition to the original16bit software. ASO sofware will not work in Windows NT.

"Sophisticated Counter Brings New Power to Microprocessor," by Dave MacMillan. Italy, Electronica Oggi, May 1983.

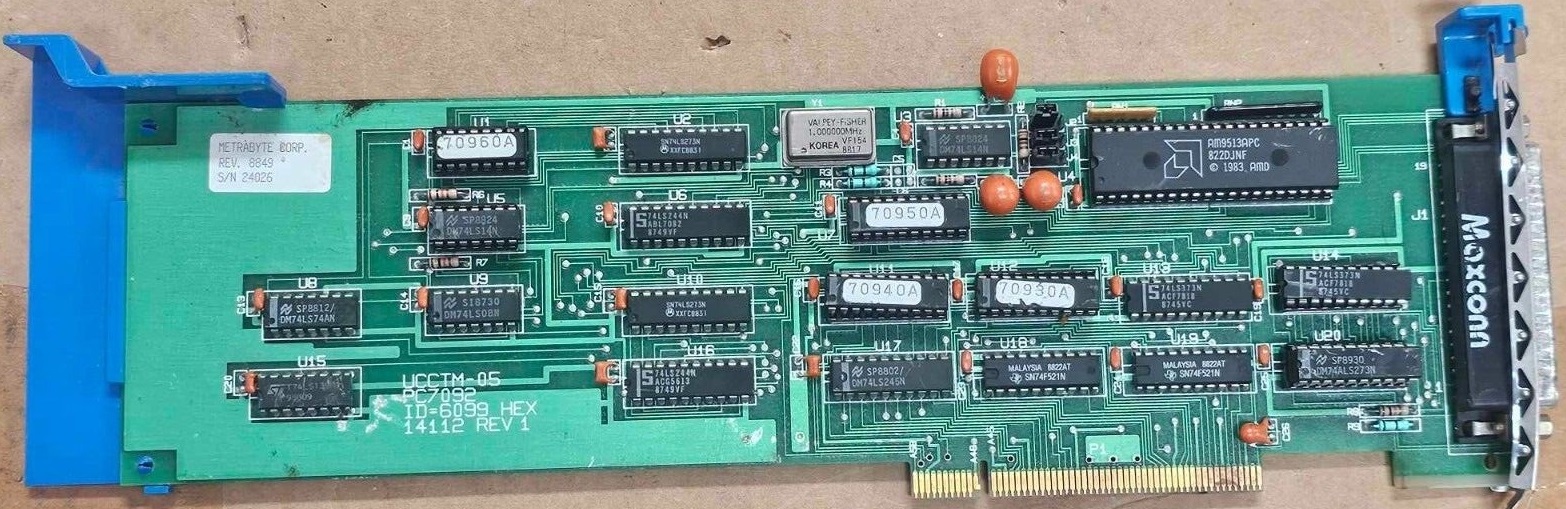

Metrabyte uCCTM-05/A

J1 DB37
J2 3-pin header
J3 3-pin header
J4 3-pin header
U1 70960A

U4 AM9513APC
U7 70950A
U11 70940A
U12 70930A
Y1 1.000000 MHz

SWAG: the 709x0A chips are GAL/PALs. Other similar chips are SIMMple logic.

Am9513A System Timing Controller Datasheet

Y1 is very precise. How often do you see six digits to the RIGHT of the decimal?

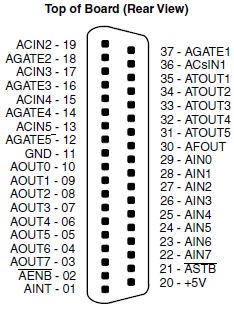

Pinout for J1 [DB37]

ADF Sections for @6099.adf "MetraByte UCCTM-05 Counter/Timer Board"

NumBytes 2

Interrupt Level
   If your interrupt handler software is designed for chaining, it may share a level with another adapter, otherwise the selected level should be dedicated to the UCCTM-05 only. Interrupt level 3 (COM2:) can be shared, but is generally best avoided.
      <"Disabled">, 3, 5, 7, 9, 10, 11, 12, 15

Base Address
   Choose a base I/O address that does not conflict with another adapter. Setup allows you 16 possible choices although the UCCTM-05 is capable of 2048 I/O addresses (XXXX XXXX XXX0 0000B). If you need an address option that is not listed run GENADF.EXE. Setup will automatically warn you of any adapter I/O address conflicts
      <"0300 Hex" 0300-0307>, 03E0-03E7, 0500-0507,0600-0607, 0800-0807, 0F00-0F07, 1000-1007, 1500-1507, 1800-1807, 2000-2007, 3000-3007, 4000-4007, 8000-8007, 0A000-0A007, 0F000-0F007, 0FF00-0FF07

NOTE: The first address is shown as "nnnn Hex"
