@80B3.ADF "Enhanced" M-MVA /A 95F1094 (adds monitor choice)
191-037 Enhanced M-Motion Video Adapter/A for the IBM PS/2 (95F1094)
190-018 M-Motion Video Adapter/A for the IBM PS/2 (34F3087)
292-663 IBM M-Control Program/2 Ver 2.01
m-mvidad.exe M-Motion Video Adpt. Software v1.02
m-mvidad.txt Readme for m-mvidad.exe
M-MMVA Installation and Technical Reference Manual ver B P/N 95F1093
m-motion.exe M-Motion 256 color driver Thanks, Dr. Jim!
mcontrol.zip MMotion Media control for M-motion Adt
mmpmctr1.exe MMotion MControl/2 for MMPM (1/2)
mmpmctr2.exe MMotion MControl/2 for MMPM (2/2)
M-MVA MCA Edge Connector Pinout
M-MVA 34F3091 Base card [DAVID.DIGITAL.BOARD]
34F3091 Daughter card [DAVID.ANALOG.BOARD]
M-MVA 95F1094 Base card [MMVA.DIGITAL.BOARD]
M-MVA 95F1094 Daughter card [MMVA.BOARD]
ADF Sections for @80B3 "M-Motion Video Adapter/A"

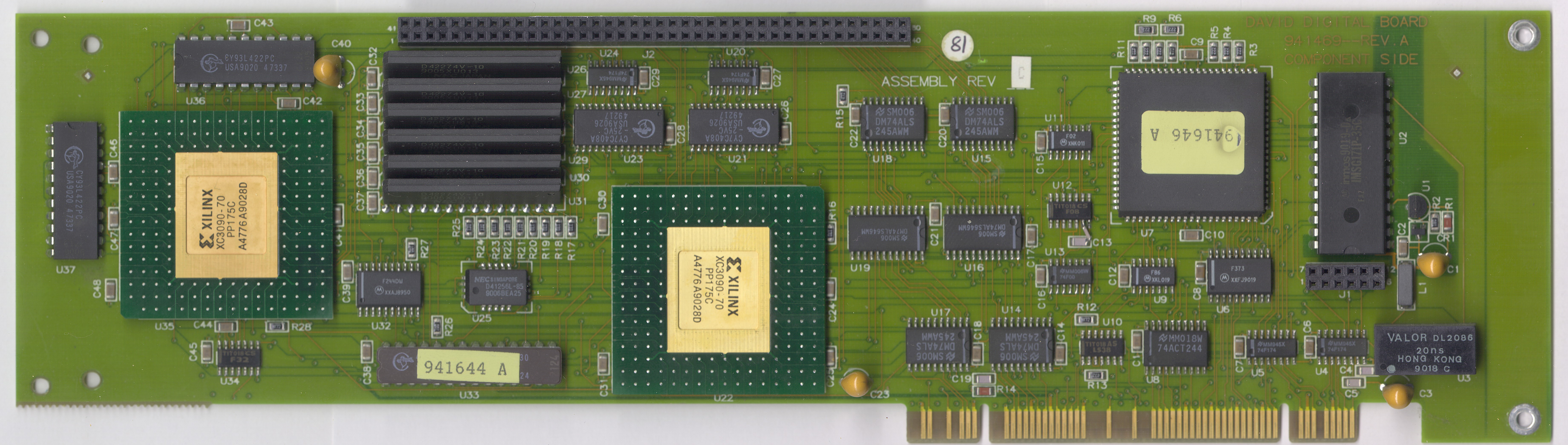

M-MVA 34F3091 Base card [DAVID.DIGITAL.BOARD]
| J1
12 Pin Receptacle J2 80 Pin Receptacle U2 INMOS IMSG171P-40 U3 Valor DL2086 20 ns U7 Altera EPB2001LC [?] U21, U23 Cypress CY7C408A -25VC |
U22
Xilinx XC3390 PP175C-5000 U25 NEC D41256L - 85 U26-U31 Toshiba TC5242256AZ-10 U33 Cypress GAL/PAL U35 Xilinx XC3390 PP175C-5001 U36, U37 Cypress CY93L422PC |
U33 941644 A Cypress GAL/PAL. Adapter BIOS ?
U7 941646 A I see no Altera logo outside of the sticker.

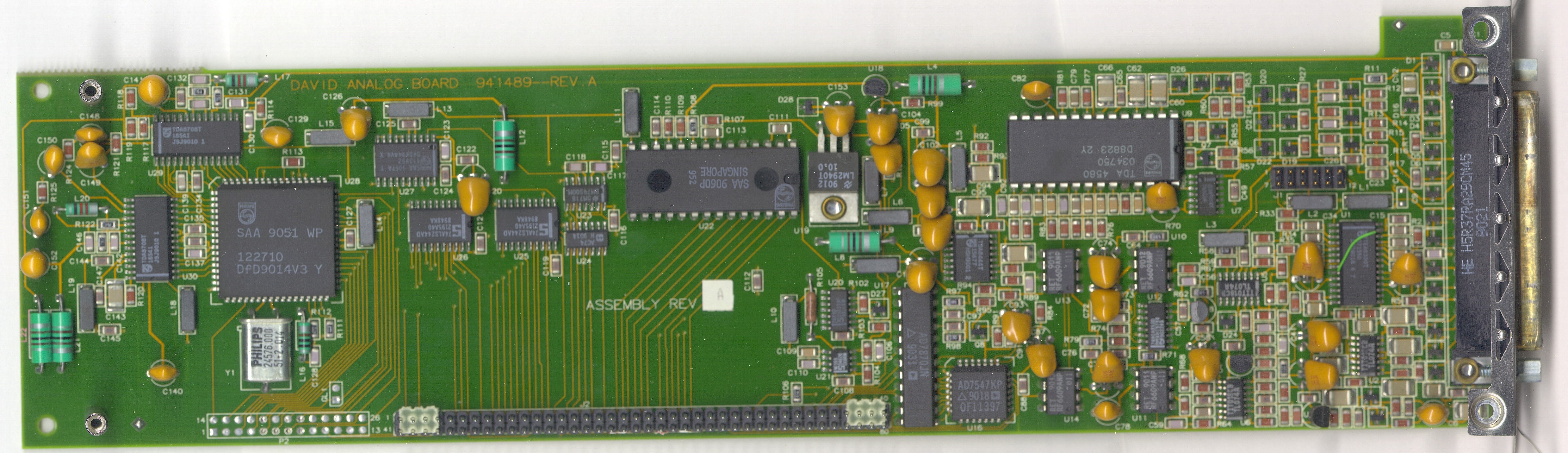

M-MVA 34F3091 Daughter card [DAVID.ANALOG.BOARD]
| J1
12-pin Header J2 80-pin Header P2 Solder Pads for 26-pin Header U1 Philips TEA6300T U9 Philips TDA4580 U10,11-U13,14 RET RF6609ANP-011 U15 TDA8444T U16 Analog Devices AD7547KP |
U17 Analog Devices
AD7870JN U19 LM2940T 10.0 U21 Signetics NE555 U22 Philips SAA9060P U27 Philips SAA9057A U28 Philips SAA9051 WP U29, U30 Philips TDA8708T Y1 24576.000 xtal |
Quite a few ferrite filters... Carbon composition resistors?
555 Timer Tutorial

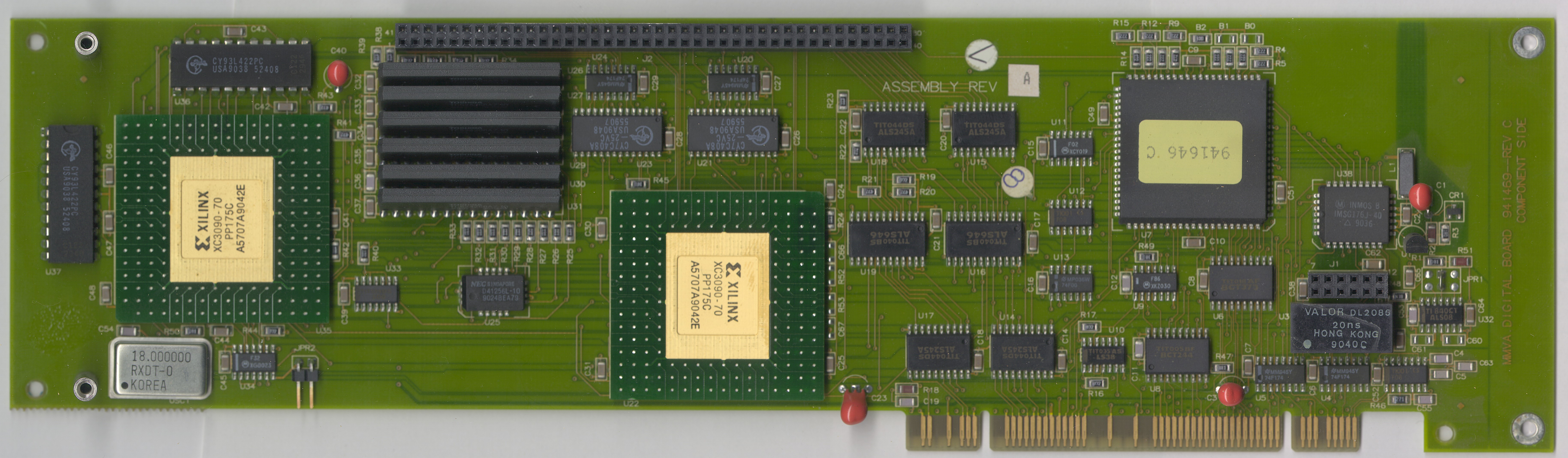

M-MVA 95F1094 Base card [MMVA.DIGITAL.BOARD]
| J1
12 Pin Receptacle J2 80 Pin Receptacle JPR1 6-pin header solder pads Unk JPR2 2-pin header Unk OSC1 18.000000 MHz osc U3 Valor DL2086 20 ns U7 Altera EPB2001LC |
U21, U23
Cypress CY7C408A -25VC U22 Xilinx XC3390 PP175C-5000 U29 NEC D41256L - 85 U26-U31 Toshiba TC5242256AZ-10 U35 Xilinx XC3390 PP175C-5001 U36, U37 Cypress CY93L422PC U38 INMOS IMSG176J-40 |
95F1094 base card adds:
JPR1 6-pin header. Middle two pins are shunted.
JPR2 [right of OSC1] can be populated or just solder pads.
OSC1 18.000000 MHz osc
95F1094 base card uses IMSG176 "High Performance DAC" [still triple 6-bit]

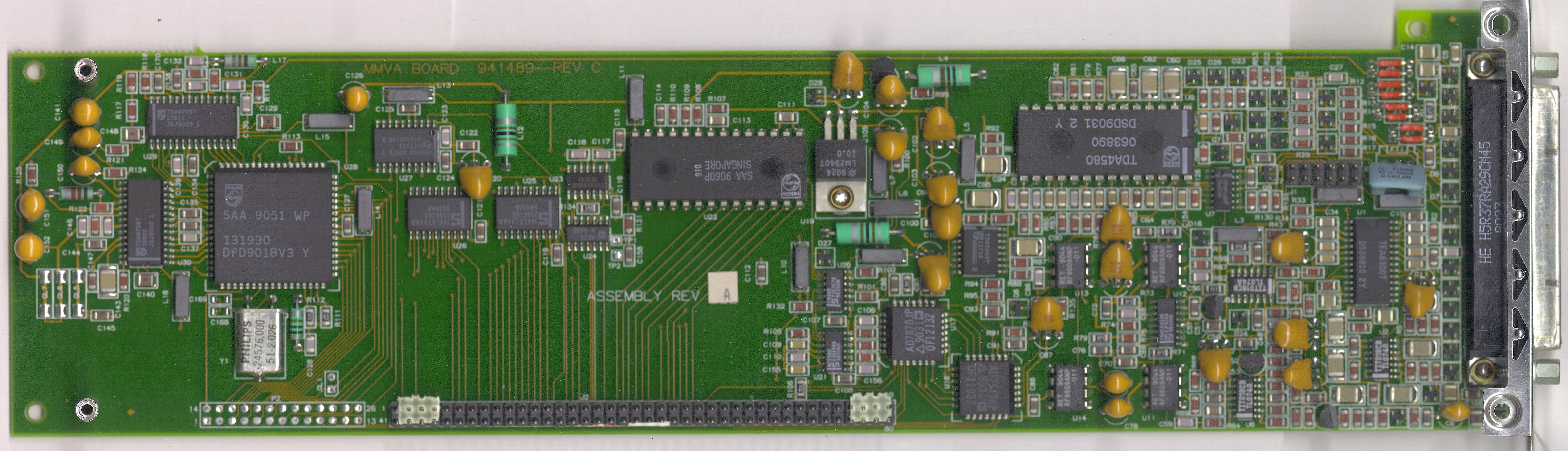

M-MVA 95F1094 Daughter card [MMVA.BOARD]
| FT1
MuRata NFV510 [right
of J1] J1 12-pin Header J2 80-pin Header P2 Solder Pads for 26-pin Header U1 Philips TEA6300T U9 Philips TDA4580 U10,11-U13,14 RET RF6609ANP-011 U16 Analog Devices AD7547KP U17 Analog Devices AD7870JP |
U19
LM2940T 10.0
U21 Signetics NE556D U22 Philips SAA9060P U27 Philips SAA9057A U30 Philips TDA8708T U29 Philips TDA8709T U28 Philips SAA9051 WP Y1 24576.0000 xtal 0 |
FT1 MuRata NFV510 20MHz 0.2A Line Filter
95F1094 daughter card
Adds FT1 [right of J1]
Uses TDA8708T / TDA8709T, instead of a pair of TDA8708T.
Uses NE556D, instead of NE555
Uses red insulated wires in upper right, vs SMD resistors
ADF Sections for @80B3 "M-Motion Video Adapter/A" [additions for new M-MVA]
pos[3]=XXXXX111b ; Allow readback of adapter rev level [added to new adf]
Adapter I/O Address Range
<"Base
1300H", (1300-1339)>, 3300 (3300-3339), 5300
(5300-5339), 7300 (7300-7339)
Adapter Interrupt
Hardware interrupts can be shared, but not
for maximum performance. If it must be shared, choose one
with the least activity. The M-MVA interrupts at 50 to 60
times per second when enabled. NOTE: Some adapters
label Int 9 as Int 2. If another adapter uses Int 2 and
you choose Int 9, you will be sharing Int 9 with it.
<Interrupt
3> or 9
Display Type (New ADF)
8514 or earlier display, 8515 if you have an
8515 display
<"8514">, 8515
