System Board, Base Memory, or Cable for RFID
Please see the LEGAL - Trademark notice.
Step
Size (Quantity)
Color
Torque
1
M2.5 x 4 mm, Nylon (4)
Yellow
4 kgcm
2
M2.5 x 6 mm, Nylon (1)
Black
4 kgcm
NOTE: Make sure you use the correct screw and tighten the
screw to the torque specified. Do not use the screw that you have removed, use
a new screw.
Step
Size (Quantity)
Color
Torque
4
5.5, hex head (2)
Silver
4 kgcm
5
5.0, hex head (4)
Silver
4 kgcm
NOTE: Make sure you use the correct screw and tighten the
screw to the torque specified. Do not use the screw that you have removed, use
a new screw.
ThinkPad 770X only
Microphone cable route:
See the following figure for the microphone cable route.
ThinkPad 770Z only

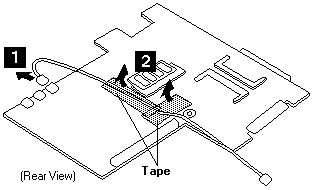

NOTE: If you replace the cable of the RFID, after replacing
the upper shield, connect the cable as follow.
Make sure that the cable is not caught by the upper shield
