1100 System Board (2640)

System Board

•  DIMM Card (if installed)
•  Battery Pack
•  Keyboard Unit
•  LCD Assembly
•  Speaker
•  Hard Disk Drive
•  PCMCIA Slot Assembly

1.  The system unit serial number must be restored when the system board is  replaced. To restorethe system unit serial number, select the option Set system identification  on  the maintenance diskette. The flash ROM on the system board contains the vital product data (VPD),  that is, the system unit serial number, system board system number, and other computer-unique data.
2.  Do not power off the computer when restoring the VPD. The system unit serial number label is attached to the  base cover.

Step	Location (Quantity)	Length
1	Base Cover (6)	4 mm (Hex)
2	Base Cover (1)	3 mm

NOTE: Make sure you use the correct screw.

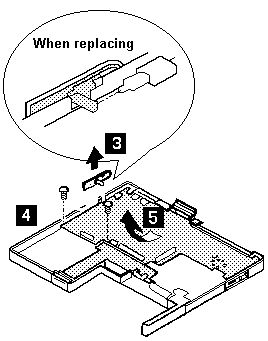

Step	Location (Quantity)	Length
1	System Board (2)	4 mm

NOTE: Make sure you use the correct screw.
