FRU Adapter 00P6130, 00P4501, 00P3056 IO bus architecture PCI 2.2 and PCI-X V1.0a compliant Busmaster Yes ADAPTER SIZE PCI short form CONNECTOR RJ-45 WRAP PLUG RJ-45 00G2380 CABLE Customer supplied, CAT-5 twisted pair bulk cables ( TIA/EIA 568A recommended )

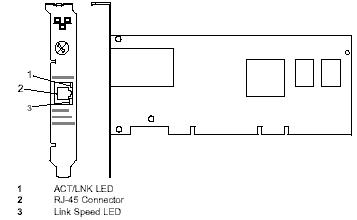

LED Status Description
1 GREEN Good link 1 OFF No link. Could be the result of a bad cable. bad connector, configuration mismatch, or not selected. 1 BLINKING Data activity 3 OFF 10 Mbps 3 GREEN 100 Mbps 3 ORANGE 1000 Mbps Created Feb 2003 by Bruno Croft Last updated: May 2004 by Jef Goupil
