POWER GXT800P PCI Graphics Adapters
1-K #2853 with base memory
and 1-L #2859 with Texture Memory

See Cabling - Interesting RETAIN tip HSF H16853 H057711

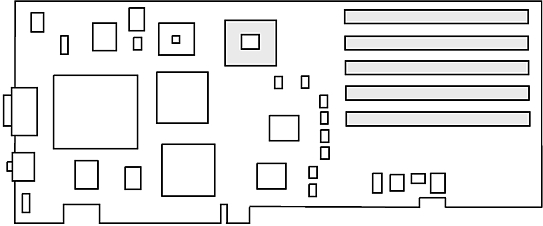

Top

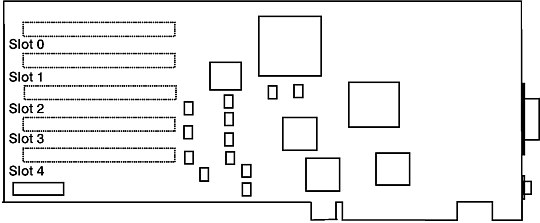

Bottom


Side - DIMM stand about 2" above the card.


 7025-F40 & 7043-140/240 Without Texture Feature

      FRU      VPD      ASM    DIMM FRU

 @* 07L7113  07L7112  07L7111  93H6055 (Current)
 @* 93H5440  93H6100  93H2789  93H6055     |
  * 93H7313  93H7314  93H7312  93H4654     |
  @ 93H7309  93H7310  93H7308  93H4654     |
  * 93H4668  93H4671  93H4667  93H4654     |
  @ 93H4677  93H4680  93H4676  93H4654     |
  * 93H2028  93H3324  93H3320  39H8702     |
  @ 39H8700  93H3311  93H3313  39H8702  (Oldest)
 @=7025-F40 & 7043-240     *=7043-140
 7025-F40 & 7043-140/240 With Texture Feature

      FRU      VPD      ASM   DIMM FRU

 @* 07L7113  07L7112  07L7111  93H6057 (Current)
 @* 93H5440  93H6100  93H2789  93H6057     |
  * 93H7313  93H7314  93H7312  93H4659     |
  @ 93H7309  93H7310  93H7308  93H4659     |
  * 93H4668  93H4671  93H4667  93H4659     |
  @ 93H4677  93H4680  93H4676  93H4659     |
  * 93H2028  93H3324  93H3320  39H8706     |
  @ 39H8700  93H3311  93H3313  39H8706  (Oldest)


           Cabling
    Displays           GXT800P
    ---------------    -------
    P50                Display
    P70                96G2156
    P200               96G2156
    P201               96G1712
    6091-19i           39H8682
    POWERdisplay 17    39H8682
    POWERdisplay 20    39H8682
    9516-A03           58F2901

Last Updated: August 2003 by Bruno Croft
