PS/1 - System Board Layout 486SX 20MHz/25MHz Level 1
Applicable to: World-Wide
Note:

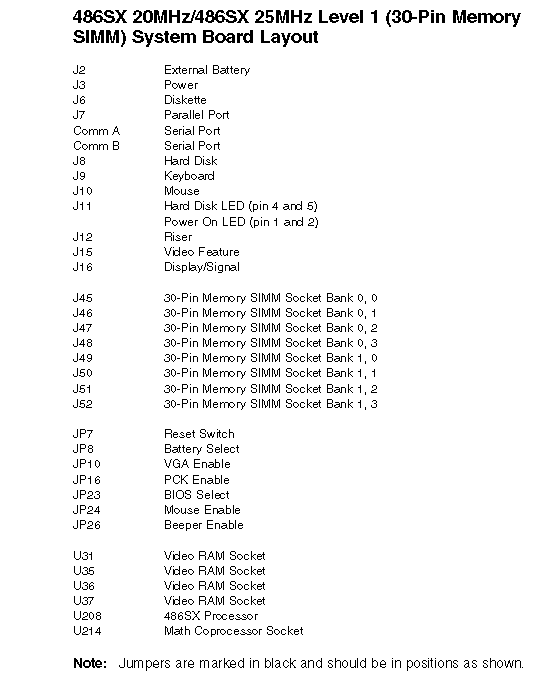

The table above is exploded into 4-sections in the proceeding pages to provide more detailed information. The 4 sections include :-
Figure 1 - Bottom-Left Corner
Figure 2 - Bottom-Right Corner
Figure 3 - Top-Right Corner
Figure 4 - Top-Left Corner
Figure 1
Bottom-Left Corner
Figure 2
Bottom-Right Corner
Figure 3
Top-Right Corner
Figure 4
Top-Left Corner
486SX 20MHz/25MHz Level 1
|
