Service Hints & Tips

Document ID: GSMH-3FGFSC

IBM PC360 - Computer exploded view

Applicable to: World-Wide

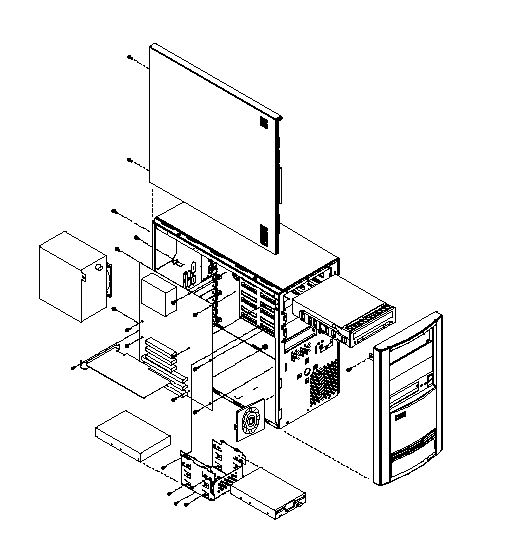

Computer Exploded View (Type 6598):

Removal procedures for the side cover, bezel, and processor are on the following page.

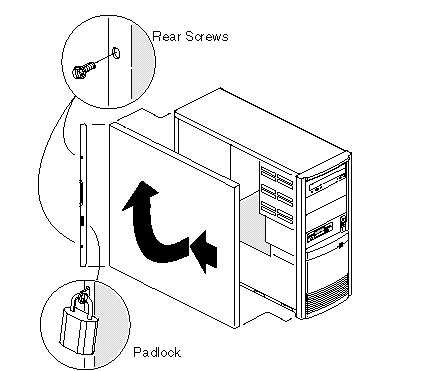

Side Cover Removal:

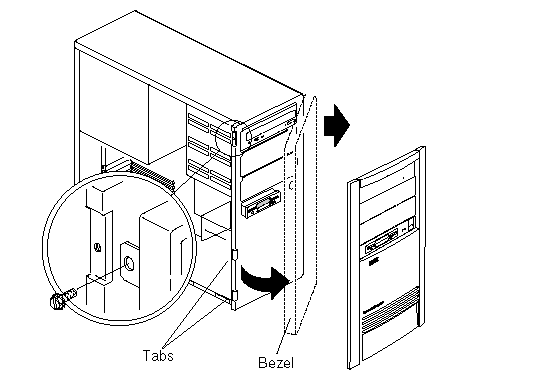

Bezel Removal:

Processor Removal:

Attention: Do not flex or twist the system board while removing or installing the processor. The system board can be damaged during this procedure.

	Search Keywords
	Hint Category	Hardware Maintenance Information
	Date Created	24-03-97
	Last Updated	14-05-98
	Revision Date	24-04-99
	Brand	IBM PC
	Product Family	PC 360
	Machine Type	6598
	Model	all
