24.032 bytes |
Service Hints & Tips |
Document ID: GSMH-3EQEQ7 |
TP 365X/XD - Inside view
Applicable to: World-Wide

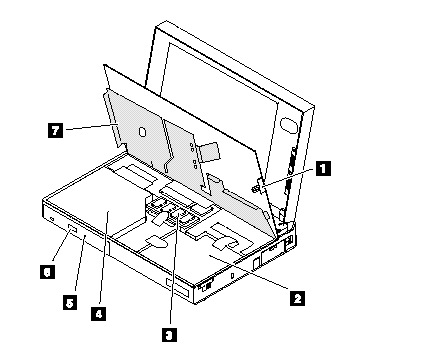

Inside View:
|
1 |
Keyboard Lock |
|
2 |
Battery Pack |
|
3 |
Optional Memory Expansion Module |
|
4 |
CD-ROM Drive (365XD) / Diskette Drive (365X) |
|
5 |
Mechanical CD-ROM eject (365XD) |
|
6 |
CD-ROM Eject Button (365XD) / FDD Bezel (365X) |
|
7 |
Cosmetic Shield |
|
