PC Server 500 - Locations (system board)
  Applicable countries/regions
Worldwide
  Service hints & tips

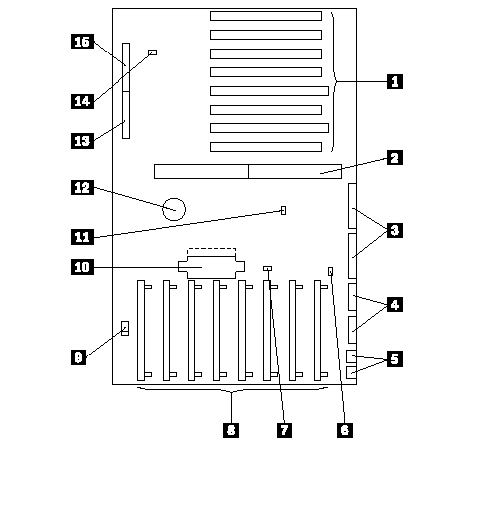

  1. 32-bit expansion slots (video extensions J25, J27)
  2. Processor slot
  3. Parallel ports
  4. Serial ports
  5. Keyboard/Pointing-device connectors
  6. Power-on Features jumper
  7. Privilege-access password jumper
  8. Memory-module connectors
  9. Tamper-evident cable connector
  10. Power supply connector
  11. Override jumper connector (JMP1)
  12. Battery
  13. Diskette-drive cable connector
  14. Reserved (Pins 1 and 2 must be connected.)
  15. Operator-panel cable connector



Locations (system board)
