LANStreamer MC16
Adapter
@8FA4.ADF - IBM LANStreamer MC 16 Adapter
@8FA4.DGS - IBM LANStreamer MC 16 Adapter Diagnostics
TRMLS16.EXE Ver 2.0 Lanstreamer MC16 Diags/Option - 720k ZIP
TRMLS321.EXE Ver 3.0 Lanstreamer MC16 Drivers NDIS 2.0 ZIP
TRPALS4.EXE WfW/95/NT MC16 NDIS3 ZIP
193-177 IBM LANSTREAMER MC 16 ADAPTER
LANStreamer MC16
ADF Sections

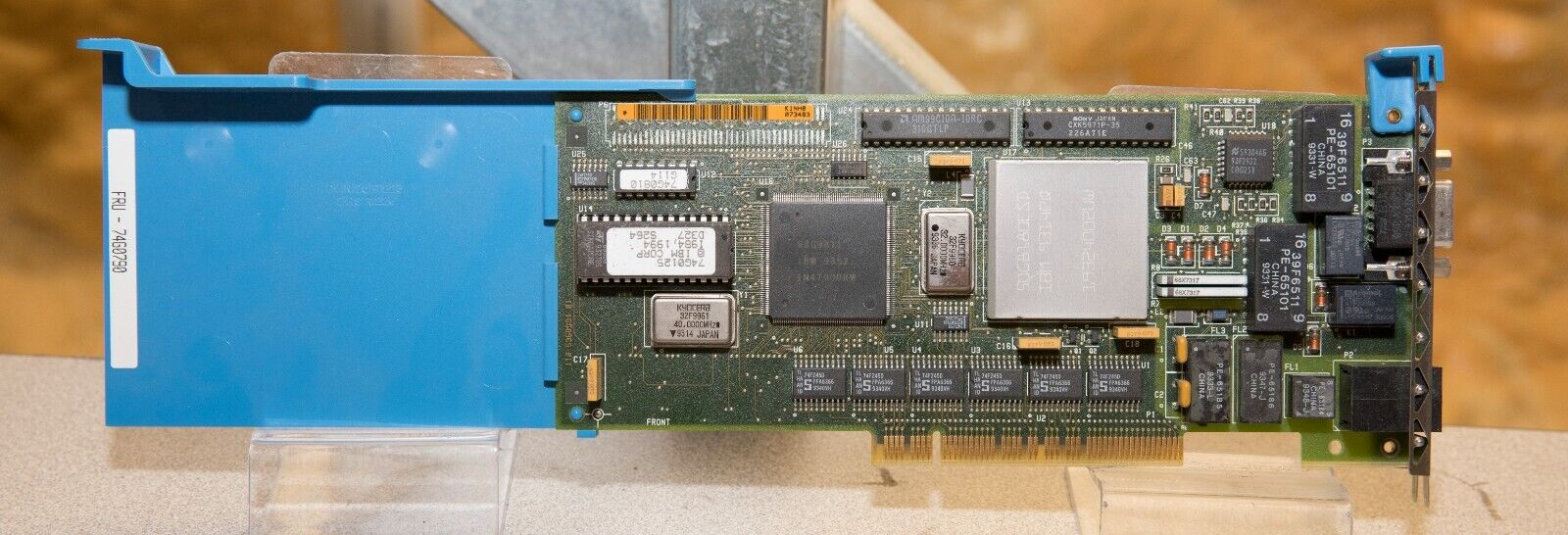

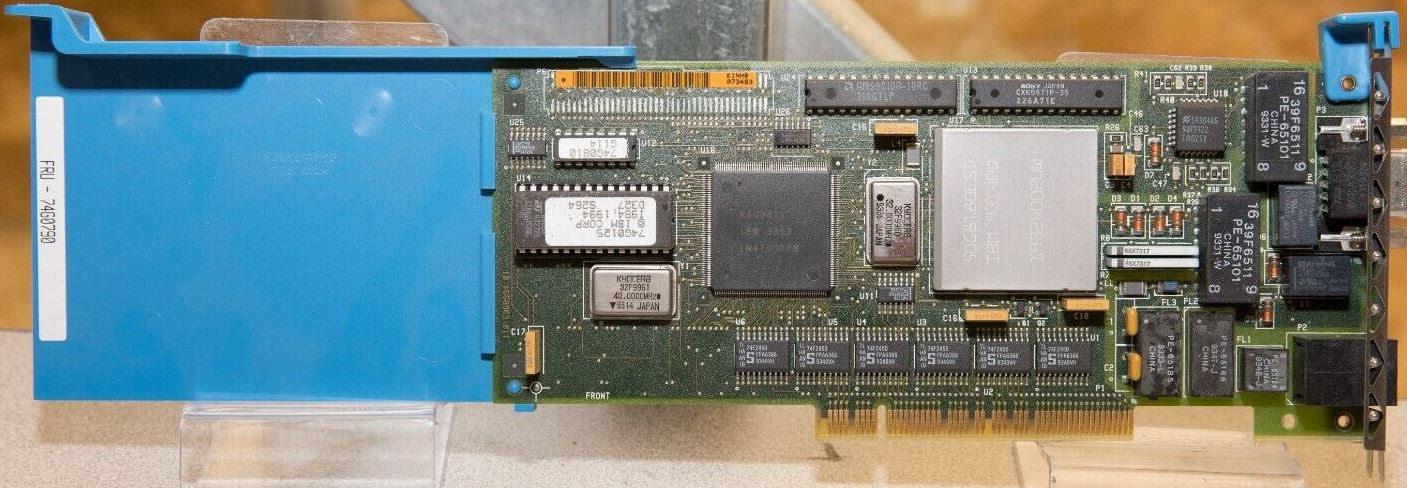

LANStreamer MC16, FRU P/N 74G0790 [originally 59G8998] Full image
| P2
RJ45 port P3 DE9 port P5 (back) pads for debug header P6 pads for debug header U12 MAC address ROM U13 CXK5971AP-35 8Kx9 SRAM U14 74G0125 µcode ROM |
U16
63G9811 MCA BM U17 50G8180 TR protocol U18 NS 93F2932 TR front end U24 Am99C10A-10 256x48 CAM Y1 40.00000 MHz osc (MCA BM) Y2 32.0000 MHz osc (TR) 0 |
24-bit DMA. The 50G8180 Token Ring protocol chip "Huntingdale" does NOT support FDX.
The 50G8180 Token Ring protocol chip uses the metal shield of the early PS/2s.
The LS MC16 works in Models 8556 and above that supports Micro Channel.
Original image by Stan Shih Computers LLC
AdapterId 08FA4 IBM LANStreamer MC 16 Adapter
NumBytes 4
FixedResources
pos[0]=1xxxxxxxb
pos[2]=xxxx0x01b
pos[3]=xx0xxxxxb
;pos 2 = set preempt time=max, enable busmaster mode
Begin NoDMA
Adapter Data Rate
This Adapter can operate at 4 or 16 Mbps. The adapter data rate MUST be set to the rate of the Token-Ring Network LAN segment to which it is connected to.
<"16 Mbps">, 4 Mbps
Adapter Media Type Selection
This Adapter supports STP and UTP. The media type selected MUST be cable connected to the token ring. If not the adapter will exhibit a LOBE MEDIA FAILURE.
<"STP">, UTP
NOTE: The LS MC16 DOES have an impedance matching network, BUT you still have to select the correct port.
Adapter I/O Address Range
The I/O address field is a six bit field that selects the I/O address of the adapter. For Micro Channel I/O cycles, this adapter is selected when the Micro Channel I/O address is within a 256 byte region. If more than one adapter in your computer is used, each adapter must be assigned a separate I/O address range.
<"1C00-1CFF">, 2000-20FF, 2400-24FF, 2800-28FF, 2C00-2CFF, 3000-30FF, 3400-34FF, 3800-38FF, 3C00-3CFF, 4000-40FF, 4400-44FF, 4800-48FF, 4C00-4CFF, 5000-50FF, 5400-54FF, 5800-58FF, 5C00-5CFF, 6000-60FF, FC00-FCFF
NOTE: The LS MC16 does NOT use the old Primary / Alternate configuration
Interrupt Level
This Adapter can use IRQ 2, 3, 10 or 11. Int 3 is preferred, but it can use all four.
<"Interrupt 3">, 2, 10, 11
NOTE: Multiple Streamers no longer need to be set to the same interrupt level. These NDIS 2 and 3 drivers will work properly even if set to the same level.
Fairness
This Adapter can operate with or without arbitration fairness .
<"Fairness ON">, Fairness OFF
Arbitration Level
This Adapter can use arbitration levels 1, 2, 3, 5 - E. If more than one adapter is used in your computer, each adapter must be assigned a separate arbitration level.
<"Level 1">, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E
Remote Program Load Address Range
The adapter's Remote Program Load (RPL) ROM is relocatable within Micro Channel memory space. The RPL ROM may be located on any 16K boundary from hex 000C 000 to 000D C000.
<"Disabled">, C0000-C3FFF, C4000-C7FFF, C8000-CBFFF, CC000-CFFFF, D0000-D3FFF, D4000-D7FFF, D8000-DBFFF, DC000-DFFFF
NOTE: Remote Program Load (RPL) is internal to the µcode.
Parity Enable
This Adapter provides the capability of generating and checking data parity.
<"Parity OFF">, "Parity ON "
