New Media Graphics
Super Video Windows for Micro Channel
Super Video Windows for Micro Channel
@621D.ADF " Super VideoWindows For IBM Micro Channel"
@8067.ADF "NMG TV Tuner For IBM Micro Channel"
There were four variants: SVW-ISA, SVW-SL, SVW-TV-Video, SVW-MC
Super Video for Windows driver disk
NMG-SVW-EndUser-PN041963B-rev1_4B.zip contains @621D and @8067
NOTE: Support for OS/2 was dropped in 1.4a

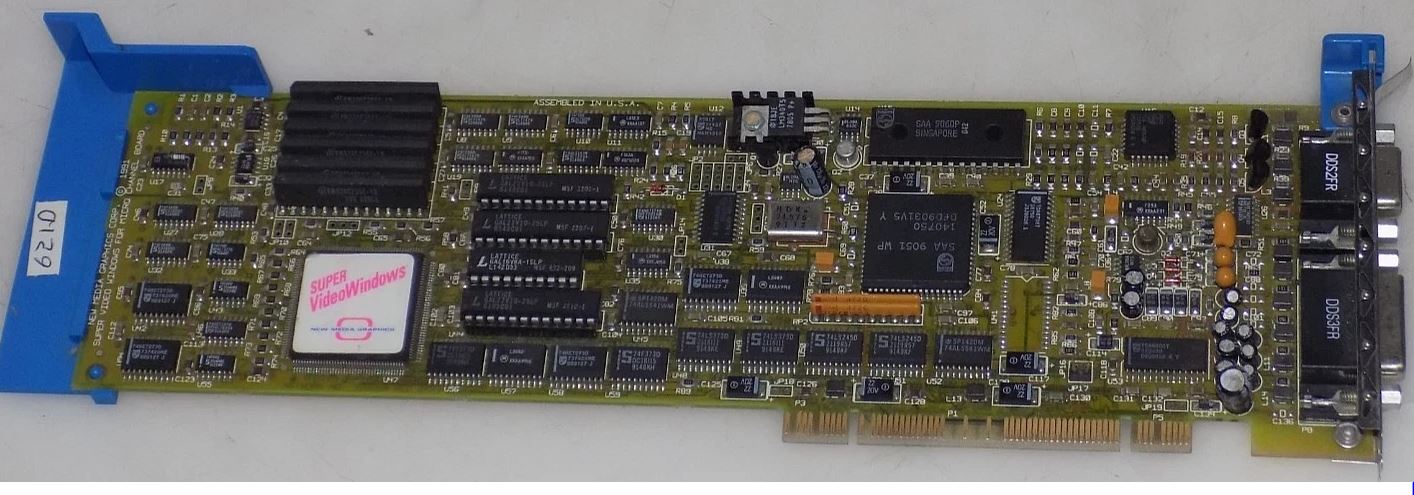

Super Video Windows for Micro Channel from seller Betty's Vintage Depot
| U2-7
KM424C256Z-10 768KB VRAM U12 PCA8581C 128w ×8 EEPROM I2C U15 SAA9060P Video Processor w/ DACs U16 TDA4680 Analog Video Processor U24 TDA8708 Video Analog Input Inter |
U40
SAA9051 WP Digital TV decoder U47 82C9001A Video Windowing Ctrl U53 TEA6300T Sound Fader control Y1 24.578 MHz osc 0 |
U2-7 KM424C256Z-10 256Kx4 bit CMOS Multiport DRAM Datasheet
U12 PCA8581C 128 words × 8-bit EEPROM with I2C-bus interface Datasheet
U15 SAA9060P Video Processor with DACs Datasheet
U16 TDA4680 Analog Video Proc. w/ Auto Cut-Off / White Level Cntrl Datasheet
U24 TDA8708 Video Analog Input Interface Datasheet
U40 SAA9051P Digital multistandard TV decoder Datasheet
U47 82C9001A PC Video™ Video Windowing Controller DataSheet
U53 TEA6300T Sound fader control circuit Datasheet
NOTE: The image is not detailed enough to identify the Philips Clock Generator :(

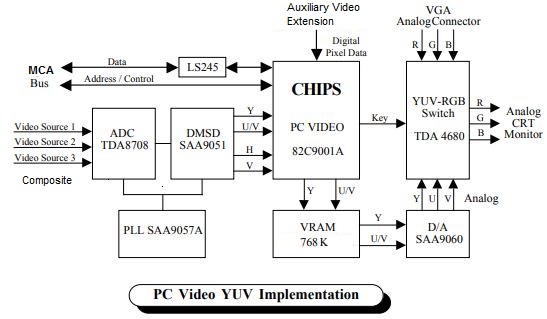

PC Video Implementation
An earlier 82C9001 revision directly supported MCA.

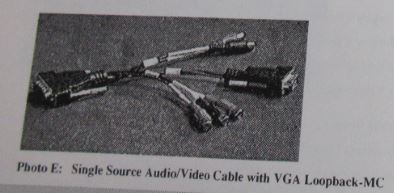

Single Source Audio/Video Cable with Loopback-MC thx to Evan Foss
DB26 with three RCA sockets together, a VGA [?] HDD-15 male connector, and two RCA sockets together.
NOTE: This does NOT resemble the picture whatsoever...
Single Source Audio/Visual Cable with Loopback-MC thx to Evan Foss
New Media used Red or Black RCAs for both video and audio, messy. RCA-R and RCA-B pattern is changed when the AUDIO_IN connectors start.
NMG seems to have used 88" of Belden 9221-010 75 ohm mini-coax, there are 11 RCA jacks, so 8" long conductor to each plug.
To me, mini-coax is overkill for audio. Looks like all grounds are brought out and then folded back over the center conductors, then a ferrule is crimped over the exposed grounds. Then the metalized hood is fastened over the ferrule.
The schematic shows the grounds connecting to DB26 pins. I'd rather put crimp-on pins onto the ground wires and connect to the DB26. A similar scheme was used on the Future Domain MCS-600, where all grounds were tied to one pin. More noise.

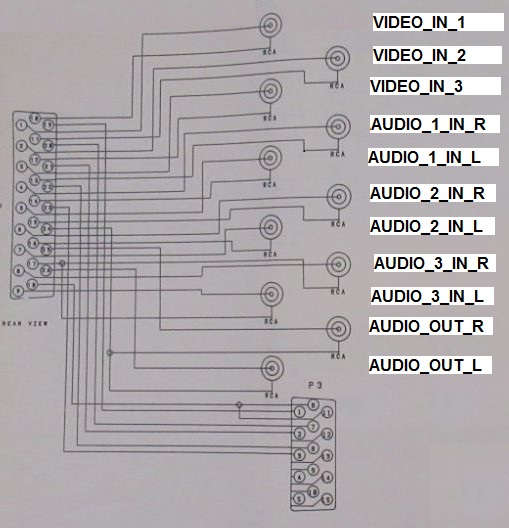

Single Source Audio/Visual Cable with Loopback-MC
Wires are grouped thusly:
A: VIDEO_IN_1, VIDEO_IN_2, VIDEO_IN_3
B: AUDIO_1_IN_R, AUDIO_1_IN_L
C: AUDIO_2_IN_R, AUDIO_2_IN_L
D: AUDIO_3_IN_R, AUDIO_3_IN_L
E: GRED, GGRN, GBLU [VGA]
F: AUDIO_OUT_R, AUDIO_OUT_L
