Pulse and Frequency
Input Module [PIM]

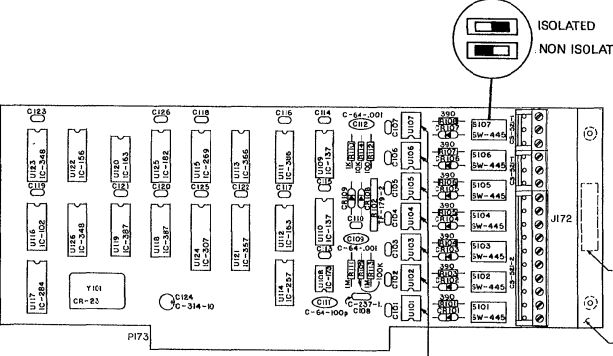

500-PIM1 8-CH Frequency Measurement Module 500-292-01B

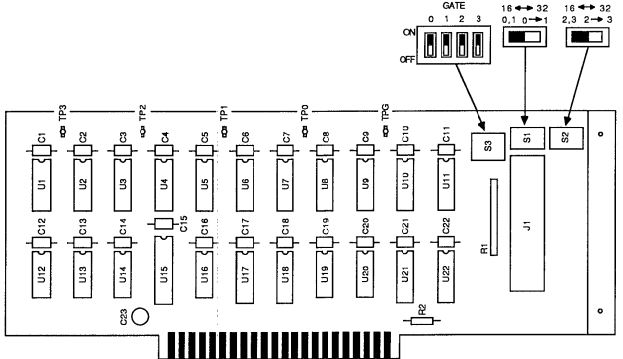

500-PIM2 4-CH, 16 bit, Pulse/Event Counting Module 500-292-02B [?]

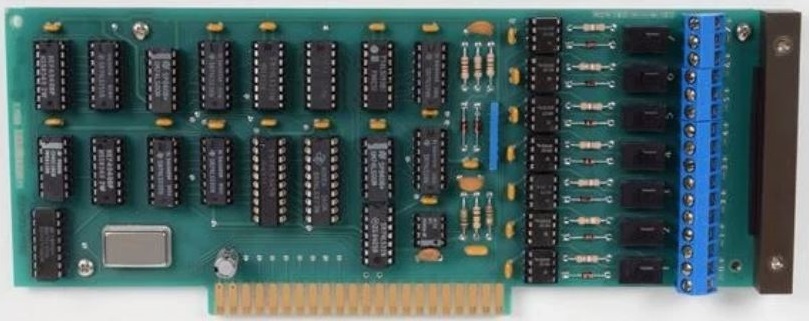

500-PIM1 Front [image from ArtisanTG]
NOTE: I cannot figure out CH0. The poor schematic has CH0+ on P173 and CH0- is to GND.

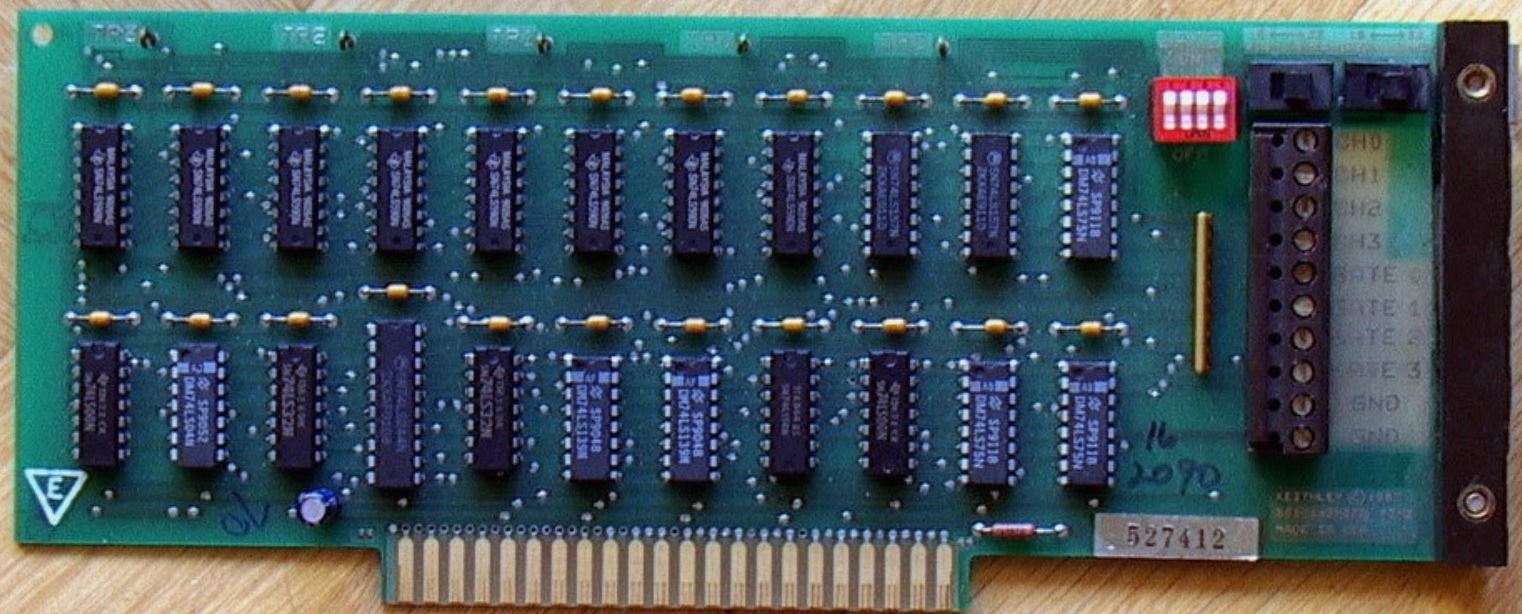

500-PIM2 Front [image from ek_france]
