Processor Assembly (8650)

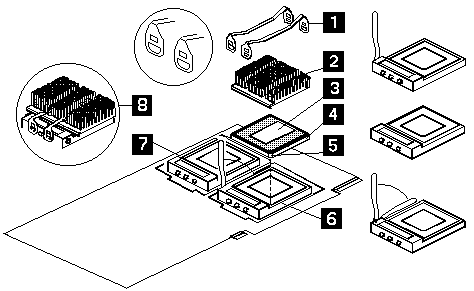

Processor Assembly

If more than one processor (MP) is installed see > System HANGs

  1.  Heat sink retention clips
  2.  Heat sink
  3.  Thermal grease
  4.  Processor
  5.  Pin 1 location
  6.  Lower processor socket with lever in open position
  7.  Upper processor socket with lever in closed/locked position
  8.  Complete assembly
