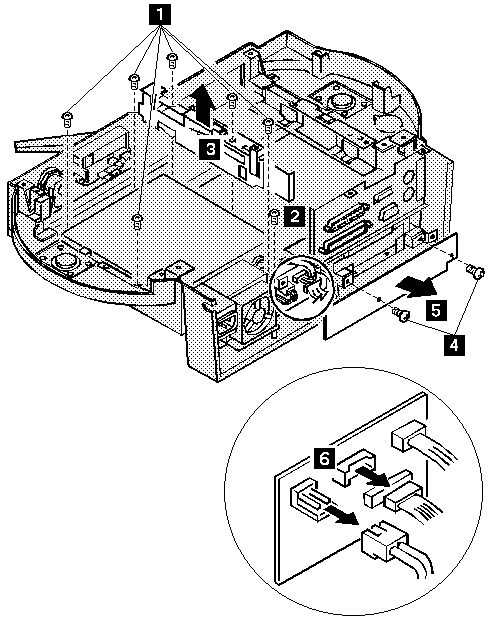

When doing sequence 5, remove the audio card
only enough to disconnect the power
supply connecters under the card.
Do not pull the card out because there are
three more cables connected to the card.
Step
Color and type (quantity)
Length
1
White screw (6)
5 mm (0.20 in.)
2
Black self tap screw (1)
8 mm (0.31 in.)
4
White screw (2)
5 mm (0.20 in.)
NOTE: Make sure you use the correct screw.
