LCD Front Cover (TP 380Z - 2635)

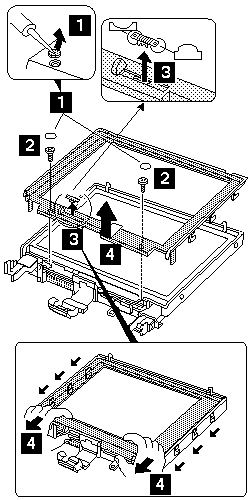

LCD Front Cover

1 2 : Screw Cover Screws
3 : Brightness Control Lever
4: Front Cover


Step Size (Quantity) Torque
2 M2.5 x 6mm, flat head (2) 3-4 kgcm

NOTE: Make sure you use the correct screw, and tighten all screws firmly to the torque shown in the table, if you have a torque screwdriver. Never use a screw that you removed.
Use a new one. Make sure the screws are tightened firmly
