2020 LCD Panel (TP 560Z - 2640)

2020 LCD Panel

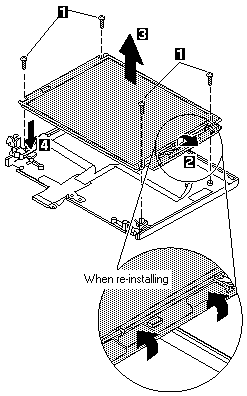

Step Size (Quantity) Torque
1 M2.5 x 5.5mm, brass flat-head (4) 3kgcm

When re-installing: Make sure you use the correct screw, and tighten it firmly to the torque shown in the table if you have a torque screwdriver. Never use a screw that you removed. Use a new one. Make sure the screw is tightened firmly (see 'Screw Tightening Information' if you do not have a torque screwdriver).
