1020 DIMM Card (TP 560Z - 2640)

DIMM Card (If Installed)

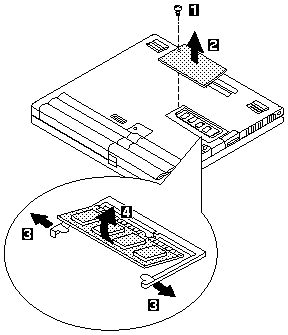

Turn the computer upside down.


Step Size (Quantity) Torque
1 M2.5 x 7mm, black pan-head (1) 4kgcm

When re-installing: Make sure you use the correct screw, and tighten it firmly to the torque shown in the table if you have a torque screwdriver. Never use a screw that you removed. Use a new one. Make sure the screw is tightened firmly (see 'Screw Tightening Information' if you do not have a torque screwdriver).
