Creating Positioning Systems

This task shows you how to create positioning systems.

  1. Click Positioning System .

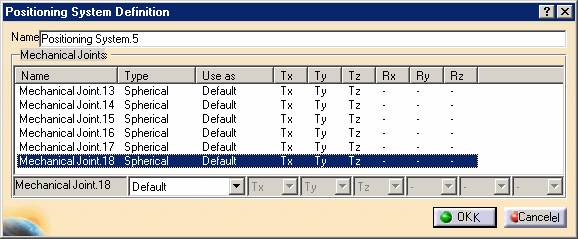

    The Positioning System Definition dialog box appears.

  1. Select Mechanical Joint.13 to Mechanical Joint.18 in the specification tree.



  1. Click OK.

    The Positioning System.5 is created.

  1. Repeat steps 1 to 3 this time, selecting Mechanical Joint.13, Mechanical Joint.14, Mechanical Joint.15.

    Positioning System.6 is created.
