This task shows you how V4 Raster images contained in a model are
copied/pasted As Result into CATIA V5. These images created with the V4
Raster functionality can be migrated into a CATDrawing. |
|

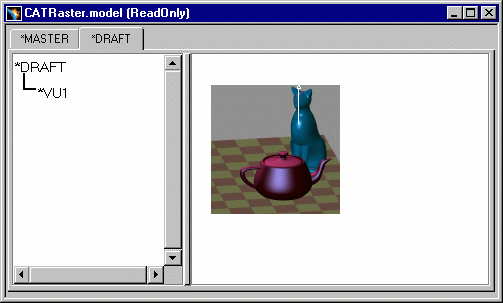

Open a .model document in CATIA V5 containing Raster data (an
associated V4 image, a Studio image for instance): |
|
In CATIA V5, you can browse a V4 model containing
Raster data. |
|
-
Copy / Paste the model into a CATDrawing document.
The Raster elements contained in the V4 model are
migrated into a V5 CATDrawing. They keep the same data structure and
you can edit and modify these images in CATIA V5.
You also have the possibility to insert another
picture in this CATDrawing by selecting the Insert command
in the File menu and the Browse dialog box
appears.
-
Apply a Check As Result on the .model only when you
notice that an entity cannot be pasted.
|
|
To sum up:
|
V4 to V5 Migration |
|
As Result |
As Spec |
DRAW Elements |
Wireframe |
Point |
Point |
N/A |
Line |
Line |
N/A |
Curve |
Curve |
N/A |
Circle (CIRD) |
Circle |
N/A |
Ellipse (ELLD) |
Ellipse |
N/A |
Parabola (PARD) |
Parabola |
N/A |
Hyperbola (HYPD) |
Hyperbola |
N/A |
Spline |
NURBS |
N/A |
Shape
> Open
> Closed
> Closed / Approximated |
Shape
Shape
Shape
Shape |
N/A |
Annotations & Dress-up |
Text
> Simple Text
> Note (text with leaders)
>GT&T
> Datum Target
> Datum Feature
> Balloon
> Roughness Symbols |
Text
Text
|
N/A |
Text Detail |
Text Detail |
N/A |
Dimensions
>Distance
> Length on line
> Length on circle
> Angle between lines
> Angle on circular arc
> Radius / TGT
> Radius / CNT
> Radius / Edge
> Radius / cylinder
> Radius on curve
> Diameter / TGT
> Diameter / CNT
> Diameter / Edge
> Diameter / Cylinder
> Diameter on curve
> Diameter on cone
> Chamfer
> Slope
> Coordinate dimension
> Distance dim. System |
Dimension
Dimension
Dimension
Dimension
Graphical Dimension
Dimension
Dimension
Dimension
Dimension
Dimension
Dimension
Dimension
Dimension
Dimension
Graphical Dimension
Graphical Dimension
Dimension
Dimension
Dimension
Dimension |
N/A |
Pattern |
Pattern |
N/A |
Raster
Image |
Raster Image |
N/A |
Arrow |
Arrow |
N/A |
Ditto |
Ditto |
N/A |
Detail |
Detail |
N/A |
Symbol Occurrence |
Geometry |
N/A |
View |
View |
N/A |
Transparent View
(SPACE elements: a model with Transparent View) |
Polyline, Line
(DRAW elements) |
N/A |
View Framing |
View Framing |
N/A |
|
|
