This test lets you check the validity of the bar element,
and retrieve displacements of an articulated truss in the plane. |
|
Reference:
AFNOR technique, SFM Paris, Guide de validation des progiciels de calcul de structures, SSLL 11/89, p40, 1990 |
|
Specifications

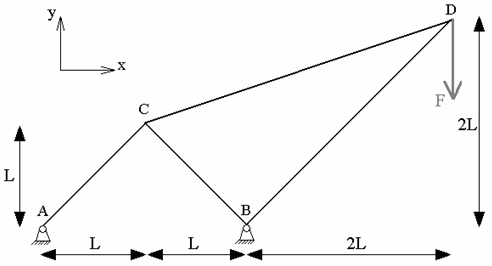

Geometry Specifications
L = 0.5 m |
|
Section (m2):
AC = 2 x 10-4
CB = 2 x 10-4
CD = 1 x 10-4
BD = 1 x 10-4 |
Analysis Specifications
Young Modulus (material):
E = 1.962 x 1011 Pa |
|
Poisson's Ratio (material):
ν = 0.3 |
Mesh Specifications: 1 linear bar element per bar
|
Restraints (User-defined):
On A and B (translation 1 and 2) |
Loads (Distributed force):
On D: Fy = -9.81 x 103 N |
|
|
Results
The table below presents the analysis results:
Points |
Displacements [m] |
Reference values |
Computed values |
Normalized results |
C |
uC |
0.26517 x 10-3 |
0.26517 x 10-3 |
1 |
vC |
0.08839 x 10-3 |
0.08839 x 10-3 |
1 |
D |
uD |
3.47902 x 10-3 |
3.47903 x 10-3 |
1.000003 |
vD |
-5.60084 x 10-3 |
-5.60035 x 10-3 |
0.999913 |
|
|
To Perform the Test:
The articulated_truss.CATAnalysis document presents a
complete analysis of this case, computed with a mesh formed of beam
elements.
To compute the case, proceed as
follow:
-
Open the CATAnalysis document.
-
Compute the case in the Generative Structural
Analysis workbench.
-
Create local sensors
(Displacements vectors).
|
