This task shows you how pyramids but also volumes
and project primitives are migrated into CATIA V5 using the
option CATIA_SPEC. |
 |
Open the document
PYRAMID+VOLUME+PROJECT.model in CATIA V5. |
|
|
 |
-
Apply a Check AS SPEC
on the solid.
|
|
|
|
-

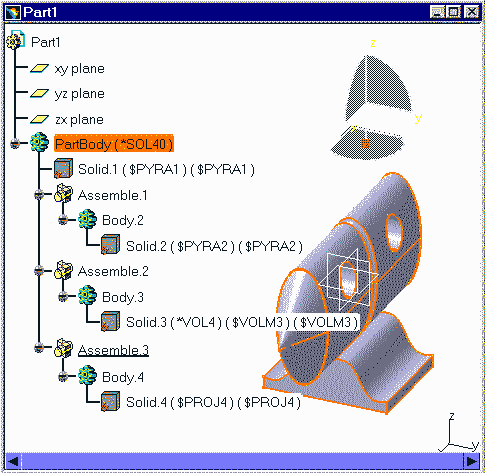

Copy and Paste Special *SOL40 into another
CATPart document using the CATIA_SPEC option and update your document to
compute the geometry.
|
|
|
|
You have access to the model's geometry
only. |
|
To sum up :
|
V4 to V5 Migration |
|
CATIA_SPEC |
|
SPACE Elements |
|
Primitives |
| Cuboid |
Pad/Pocket |
| Cylinder |
Pad/Pocket |
| Sphere |
Shaft / Groove |
| Cone |
Shaft / Groove |
| Torus |
Shaft / Groove |
| Revolution |
Shaft / Groove |
| Prism |
Pad / Pocket |
| Pipe - Center Curve |
Rib / Slot |
| Pyramid |
Solid
Datum |
| Sweep |
Rib / Slot |
| Sweep Spine |
Solid Datum |
| 3D Sweep |
Rib / Slot |
| Sweep Until |
Solid Datum |
| Sweep non close |
Solid Datum |
| Offset |
Thick Surface |
| Close |
Close |
| Project |
Solid
Datum |
| Volume |
Solid
Datum |
| Constant Edge Fillet |
Edge Fillet |
| Constant Edge Fillet
(several edges, distinct values) |
Variable Angle Fillet |
| Rolling Edge Fillet |
Edge Fillet (option Keep
Edge on) |
| Face-Face Fillet |
Face-Face Fillet |
| Variable Angle Fillet |
Variable Angle Fillet |
| Tritangent Fillet |
Tritangent Fillet |
| Basic Draft |
Basic Draft |
| Draft Reflect Line |
Draft Reflect Line |
| Import (with MML link) |
Solid Datum |
| Macro-Primitive |
Copy with Link of a Body |
| Not Supported Primitive |
Solid Datum (if the solid
is smart) |
|
|
 |
